Vibrator
Remove the air
Easy operation
Variable-speed throttle
Robust
Locked motor end plates
Durable
In-line lubricator
Our vibrator

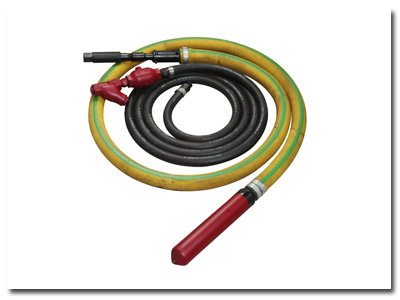

The CP 2190 is a heavy duty tool designed for use when pouring low slump concrete in columns, footings, slabs and walls.
It has a greater radius of influence which translates to more work accomplished in a shorter period of time. Unlike electric concrete vibrators, there is no risk of shock or need for extension cords and plugs.
Applications
Used for removing air pockets from pourings of low slump concrete in columns, footings, slabs and walls.
Where are you from?
Dam contractor, Hydro-electric contractor, Bridge builder, Concrete construction contractor, Piling contractor, Large builder, Harbor board, Highway contractor, Pre-cast company, Main drainage and sewage engineer...
| PNEUMATIC CONCRETE VIBRATOR |
|
CP 2190 |
| Weight |
kg |
19 |
| Length |
mm |
350 |
| Diameter |
mm |
63.5 |
| Air Consumption |
l/s |
31 |
| Frequency |
bpm |
12,000 |
| Air Inlet |
|
3/4" NPT |
Vibration Level 3 Axes
(ISO 20643) |
m/s² |
1.6 |
| Part Number |
|
T019308 |
|
|
