MAN TGS WW
MAN TGS WW
The power pack for use in the harsest conditions around the world


The robust TGS WW is able to carry very heavy loads and has been specially developed by MAN for use outside of western Europe: The truck copes safely and easily with even the most difficult road conditions, including in extreme weather, such as icy temperatures and snow, or even sweltering heat. MAN offers TGS WW predominantly for countries in the Middle and Far East, Africa, and the Commonwealth of Independent States. Whether as a semitrailer tractor, chassis or tipper, the truck is perfectly suited to use in the harshest conditions and in difficult transport projects.

The vehicle configuration of the MAN TGS WW can be optimally adapted to particular geographical requirements. As an efficient commercial vehicle for driving on the roads during short- and long-haul transport, MAN offers two-, three- and four-axle semitrailer tractors and chassis with permissible gross weights of up to 50 tonnes.

The combination of numerous special features makes the MAN TGS WW a particularly reliable and cost-effective working vehicle: A sturdy radiator grille with stone guard, protective grilles on the headlights, rear lights and on the fuel tank, 24-inch tyres and a desert cooler radiator or cold-weather equipment for temperatures as low as -50 °C provide the essentials for tackling the challenges drivers face during international heavy-duty transport. The EfficientLine package available for the TGS WW further reduces fuel consumption and therefore CO2 emissions as well.

Powerful and reliable
With its unrivalled, versatile wheel and drive formulae, the MAN TGS WW delivers the load to its destination safely and on time, even if the destination is off the beaten track. Even on muddy forest and field tracks, hills and slippery roads, the MAN TGS WW has sufficient traction.

Strong and flexible
Whether configured as a two-, three- or four-axle vehicle, the MAN TGS WW is perfectly suited to all tasks and requirements involved in building site and distribution transport. With the different wheelbases and numerous configuration options for the fifth-wheel heights, the MAN TGS WW can be adapted to suit geographical requirements. Thanks to the hole pattern, extensions and conversions can also be carried out quickly and economically, without having to drill additional holes.

All-weather-proof
The MAN TGS WW can cope with all weather conditions, from high temperatures to extreme cold with ice and snow. MAN offers a desert cooler radiator for use in hot climates and optional cold-weather equipment for colder climes, which ensures safety and reliability at temperatures as low as -50 °C.

Safe and secure grip
The MAN TGS WW with permanent or selectable all-wheel drive is brought into action wherever maximum traction is required. The two-gear MAN distributor gearbox with on-road and off-road gears distributes power evenly. All-wheel drive vehicles also boast AP axles with good ground clearance, differential locks, hub brakes and stabilisers.


TGS 41.480 8x4 Tipper

Technical Specifications

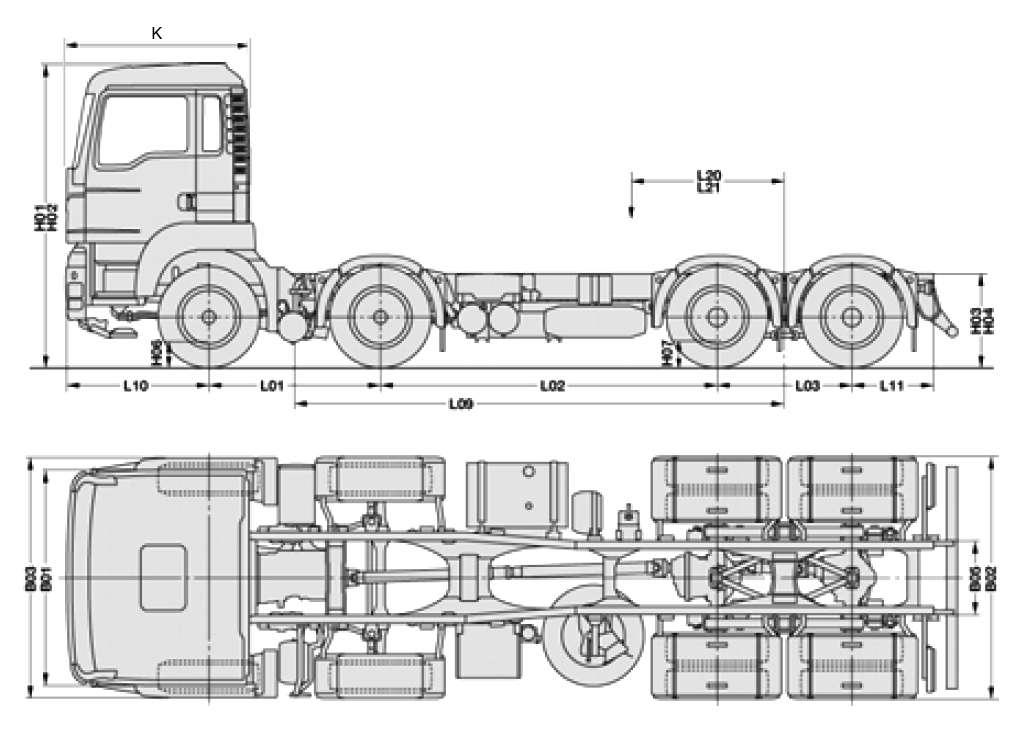

ChassisDIMENSIONS in millimeters (mm)
L01: Wheelbase from 1st to 2nd axle1795
L02: Wheelbase from 2nd to 3rd axle
3505
L10: Vehicle overhang at front
1475
L14: Frame length behind cab
7070
L13: Centre of 1st wheel to 2nd kink of frame
3825
L42: Overall length
9318
B01: Width across cab
2240
B02: Width across rear wheels
2472
H01: Height to cab top, unladen
3231
H02: Height to cab top, laden
3147
H03: Frame height, unladen
1115
H04: Frame height, laden
1045
H06: Ground clearance at front
364
K: Cabin Length
1880
K01: Turning circle
diameter in m 23.5



 Unladen (Kerb Weight)Laden
Front Axle6.66019.000
Rear Axle3.690
32.000
TOTAL10.36050.000



Model : TGS 41.480 8x4 Tipper
Engine :
MAN-D2676
- Six cylinder in-line Diesel Engine, Common Rail, Turbocharging, Intercooling.
- Displacement 12,4 liters.
- Power Output 480 HP (353 kW) @ 1900 rpm.
- Torque 2300 Nm @ 1050 – 1400 rpm
- Emission EURO-II

Clutch:
- Single plate clutch MF Z 430 reinforced, pull type power, assisted asbestos free clutch.
- Clutch plate diameter 430 mm.

Gearbox :
ZF 12 AS 2330 OD, MAN TipMatic
- 12 Speed Automated constant-mesh gearbox and reverse.
- Ratio Range : 12.33 – 0.78 : 1

Exhaust :
Upswept, Right.
Front Axle :
MAN VO-09, Straight, capacity 9.5 Ton.
Rear Axle :
MAN AP HPD-1382/HP 1352, capacity 32 Ton.
- Hub Reduction with inter axles differential lock
- Boggie suspension on Tandem Axles with stabilizer bar.
- Planetary axle Ratio i : 5,33
- Tyre 12.00 R 24.
