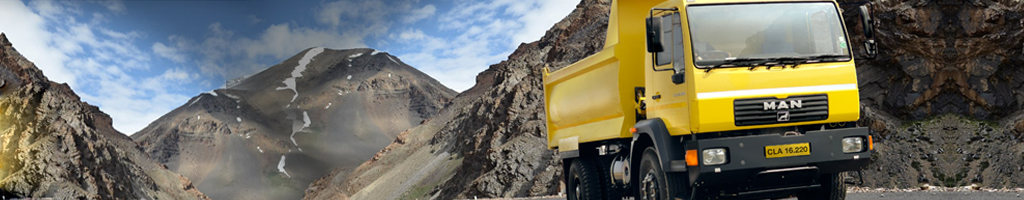

Robust and reliable


Vehicles in the MAN Cargo Line A (CLA) series are designed for the tough working conditions of the markets in Africa, Asia, and the Commonwealth of Independent States. The proven vehicle concept, based on the MAN M 2000L and F 2000 trucks, includes long-haul trucks, semitrailer tractors, tippers and mobile mixers with a two-, three- or four-axle chassis.

The robust and reliable MAN CLA boasts proven MAN technology at competitive prices and meets all the demands placed on a truck to be driven both on the road and on rough terrain. The truck is manufactured by MAN's subsidiary in India, where it is specially adapted to the country's typical working conditions. Its combination of reliable and easy-to-service technology means that you can always rely on the MAN CLA, even in countries where the service infrastructure is less well developed. As a subsidiary of MAN Truck & Bus, MAN TRUCKS INDIA Pvt. Ltd produces and markets the MAN CLA. It is shipped to the export markets with its chassis either fully built up (fbu) or completely built up (cbu), and it can also be delivered as a truck-in-the-box (TiB) assembly kit. MAN's established assembly partners then put it together at their site with the help of experienced MAN technicians. MAN CLA trucks are made from robust parts and boast proven technology, low fuel consumption and low operating costs, thus offering the reliability that you can always expect from MAN.

Versatile
The MAN CLA is specially adapted to geographical requirements and the type of work for which it will be used. Whether as a long-haul truck, semitrailer tractor, tipper or mobile mixer – the MAN CLA meets the varied demands of long-haul, building site and distribution traffic, and can even be used on surface mining sites or as a heavy-duty vehicle.

Reliable and cost-effective
Rely on advanced technology that has spent decades being developed and improved. The MAN CLA is based on the proven MAN 2000 series, which ensures safe and reliable operation. The components used in the MAN CLA are famous for their long service life and ease of servicing.

Robust
When road conditions get tough, you need a truck you can rely on that meets all the challenges of building site, distribution and long-haul traffic. The extremely strong structure of the chassis and its good body-mounting abilities provide a high payload.

Local assembly
The MAN CLA is assembled in state-of-the-art facilities in India and then delivered to customers in India or exported abroad. The MAN CLA can also be shipped as a "truck in a box" and assembled locally by experienced MAN technicians.

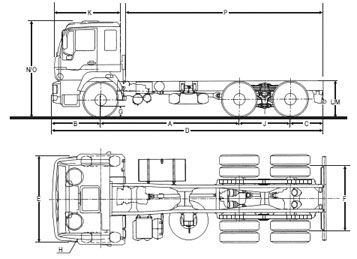

Technical Specifications

ChassisDIMENSIONS in millimeters (mm)
Wheelbase(A) 3825
Front Overhang(B) 1293
Rear Overhang(C) 900
Overall Length(D) 7507
Front Track(E) 2075
Rear Track(F) 1815
Minimum Ground Clearance (at front)(G) 385
Turning Circle Diameter (meters)(H) 19.5
Distance between Two Rear Axles(J) 1400
Cabin Length(K) 1790
Over Chassis Height from Ground (Unladen)(L) 1157
Chassis Height from Ground (Laden)(M) 1107
Overall Height from Ground (Unladen)(N) 2878
Overall Height from Ground (Laden)(O) 2838
Frame Length behind Cab(P) 5399



 Unladen (Kerb Weight) (kg)Laden (kg)
Front Axle35507500
Rear Axle430023000
Total785026000



Model : CLA 26.280 6x4 TIPPER
Engine : MAN D-0836
- Six-cylinder in-line Diesel Engine with Direct Injection, Turbocharged and Intercooled
- Displacement 6.9 Liters
- Power output 280 hp (206 kW) @ 2400 rpm
- Torque 1100 Nm @ 1300-1700 rpm
- Economic speed range 1400-1700 rpm
- Emission EURO-III
Clutch :
- Single dry plate pull type power assisted asbestos free clutch
- Clutch Plate Diameter 430 mm
Gearbox : ZF 9S-1110 TO
- 9-speed synchronised range gearbox with crawler and reverse gears. Over Drive
- Force-feed oil lubrication by oil pump. Full flow oil filter
Exhaust : Horizontal Exhaust toward rear
PTO : PTO Tipper Pump
Front Axle : MAN Heavy Duty straight FM 08 Type
Rear Axle : MAN FORCE H9 & HD9 13120 Planetary
- Hub reduction with inter Axles differential lock
- Bogie suspension on Tandem Axles with stabiliser bar and radius rods to ensure stability in off road conditions
- Rear Axle Ratio 7.63 : 1
- Tyre : 11.00 R20

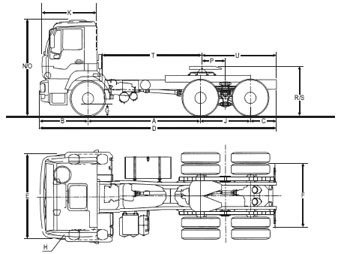

Technical Specifications

ChassisDIMENSIONS in millimeters (mm)
Wheelbase(A) 3175
Front Overhang(B) 1293
Rear Overhang(C) 725
Overall Length(D) 6593
Front Track(E) 2075
Rear Track(F) 1815
Minimum Ground Clearance (at front)(G) 273
Turning Circle Diameter (meters)(H) 18.5
Distance between Two Rear Axles(J) 1400
Cabin Length(K) 1490
Overall Height from Ground (Unladen)(N) 2766
Overall Height from Ground (Laden)(O)2726
King pin offset from Rearmost Axle(P) 577
King Pin Height from Ground (Unladen)(R) 1398
King Pin Height from Ground (Laden)(S) 1345
King Pin offset from Cabin back(T) 2872
King Pin offset from Chassis end(U) 2002



 Unladen (Kerb Weight)Laden
Front Axle34306000
Rear Axle435019000
Total778025000

Gross combination weight – 44000*
* when coupled with suitable 3 Axle Semi Trailer



Model : CLA 25.280 6x4, Tractor
Engine : MAN D-0836
- Six-cylinder in-line Diesel Engine with Direct Injection, Turbocharged and Intercooled
- Displacement 6.9 Liters
- Power output 280 hp (206 kW) @ 2400 rpm
- Torque 1100 Nm @ 1300-1700 rpm
- Economic speed range 1400-1700 rpm
- Emission EURO-III
Clutch :
- Single dry plate pull type power assisted asbestos free clutch
- Clutch Plate diameter 430 mm
Gearbox : ZF 9S-1110 TO
- 9-speed synchronised range gearbox with crawler and reverse gears. Over Drive
- Force-feed oil lubrication by oil pump. Full flow oil filter
Exhaust : Upswept, Left
Front Axle : MAN Heavy Duty Dropped FM 08 Type
Rear Axle : MAN H9 & HD9 13120 Planetary
- Hub reduction with inter Axles differential lock
- Bogie suspension on Tandem Axles with stabiliser bar and radius rods to ensure stability in off road conditions
- Rear Axle Ratio 5.26 : 1
- Tyre : 11.00 R20

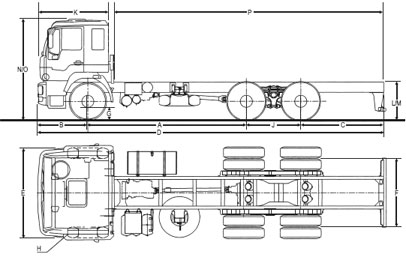

Technical Specifications

ChassisDIMENSIONS in millimeters (mm)
Wheelbase(A) 4600
Front Overhang(B) 1293
Rear Overhang(C) 2650
Overall Length(D) 10032
Front Track(E) 2075
Rear Track(F) 1815
Minimum Ground Clearance (at front)(G) 273
Turning Circle Diameter (meters)(H) 21.0
Distance between Two Rear Axles(J) 1400
Cabin Length(K) 1790
Chassis Height from ground (Unladen)(L) 1045
Chassis Height from Ground (Laden)(M) 995
Overall Height from ground (Unladen)(N) 2766
Overall Height from ground (Laden)(O) 2726
Frame Length behind Cab(P) 7924



 Unladen (Kerb Weight)Laden
Front Axle34307500
Rear Axle435021000
Total778026000



Model : CLA 26.280 6x4 CHASSIS
Engine : MAN D-0836
- Six-cylinder in-line Diesel Engine with Direct Injection, Turbocharged and Intercooled
- Displacement 6.9 Liters
- Power output 280 hp (206 kW) @ 2400 rpm
- Torque 1100 Nm @ 1300-1700 rpm
- Economic speed range 1400-1700 rpm
- Emission EURO-III
Clutch :
- Single dry plate pull type power assisted asbestos free clutch
- Clutch Plate Diameter 430 mm
Gearbox : ZF FORCE 9S-1110 TO
- 9-speed synchronised range gearbox with crawler and reverse gears. Over Drive
- Force-feed oil lubrication by oil pump. Full flow oil filter
Exhaust : Upswept, Left / Horizontal Exhaust*
Front Axle : MAN Heavy Duty FM 08 Dropped Type
Rear Axle : MAN FORCE H9 & HD9 13120 Planetary
- Hub reduction with inter Axle differential lock
- Bogie suspension on Tandem Axle with stabiliser bar and radius rods to ensure stability in off road conditions
- Rear Axle Ratio 5.26 : 1
- Tyre : 11.00 R 20

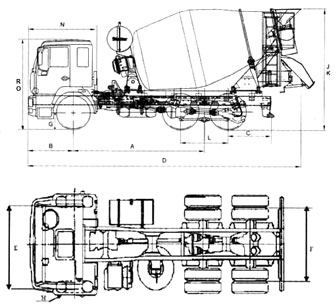

Technical Specifications

ChassisDIMENSIONS in millimeters (mm)
Wheelbase(A) 3175;3825
Front Overhang(B)1293
Rear Overhang(C) 900
Overall length(D) 7420;8070
Front Track(E) 2075
Rear Track(F) 1815
Minimum Ground Clearance (at front)(G) 273
Turning Circle Diameter (meters)(H) 18,5;19,5
Distance between Two Rear Axles(L) 1400
Cabin Length(N) 1790
Maximum Height from ground (Unladen)(J) 3590
Maximum Height from ground (Laden)(K) 3550
Height to cab top, unladen(R) 2766
Height to cab top, laden(O) 2726



 Unladen (Kerb Weight)Laden
Front Axle3.5507.500
Rear Axle4.30023.000
TOTAL7.85026.000



Model : CLA 26.280 6x4 Mixer Truck
Engine : MAN-D0836
-Six cylinder in-line Diesel Engine with Direct Injection Turbocharged and Intercooled
-Displacement 6,9 liters
-Power Output 280 HP ( 206 kW) @ 2400 rpm
-Torque 1100 Nm @ 1300 – 1700 rpm
-Economic Speed Range 1400-1700 rpm
-Emission EURO-III
Clutch :
- Single dry plate pull type power assisted asbestos free clutch
- Clutch plate diameter 430 mm
Gearbox : ZF FORCE 9S-1110 TO
- 9 Speed Synchronized range gearbox with crawler and reverse gears
- Force-Feed oil lubrication by oil pump, full flow oil filter
Exhaust : Horizontal Exhaust toward rear
PTO : Engine PTO
Front Axle : MAN Heavy Duty FM 08 Dropped Type
Rear Axle : MAN FORCE H9 & HD9 13120
- Hub Reduction with inter axles differential lock
- Boggie suspension on Tandem Axles with stabilizer bar and radius rods to ensure stability in off road conditions
- Planetary axle Ratio i : 5,26
- Tyre : 11.00 R 20
