Spike drivers
Engineered for high performance
Service friendly
Easy access to daily service points
Integral oiler
Provides continuous lubrication
Four-bolt backhead
Withstands rugged use

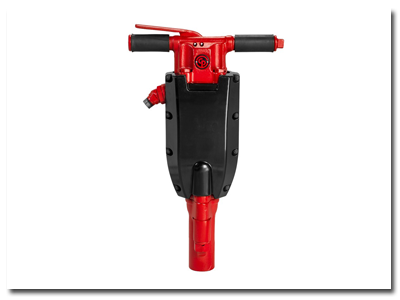

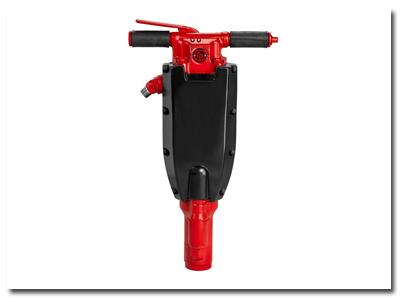

Our spike drivers
These specialized spike drivers are built to the same exacting specifications as our heavy duty pneumatic breakers, but with an open front head without tool retainer. The opening in the front head accepts a maximum spike head diameter of 44 mm. Both models are “Hushed Power” versions equipped with a muffler.
Applications

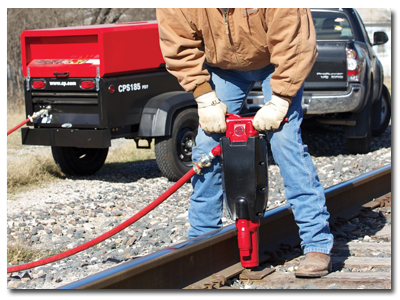

Used for driving spikes in railroad, construction and plant maintenance applications and in tent erection
| PNEUMATIC SPIKE DRIVERS |
|
CP 1260 S
SPDR |
CP 1290 S
SPDR |
| Weight |
kg |
29.5 |
38 |
| Length |
mm |
625 |
660 |
| Air Consumption |
l/s |
34.5 |
43 |
| Blows Per Minute |
bpm |
1,300 |
1,110 |
Vibration Level 3 Axes
(ISO 20643) |
m/s² |
20.7 |
18.4 |
Sound Power Level
Guaranteed (I2000/14/EC) |
dB(A) |
110 |
111 |
Sound Pressure Level
(ISO 11203) |
dB(A) |
97 |
98 |
| Air Inlet |
|
3/4" NPTF |
3/4" NPTF |
| Max Head Diameter |
mm |
44 |
44 |
| Part Number |
|
8900 0030 34 |
8900 0030 43 |
|
|
