Sinkers/surface rock drills
High-speed drilling
Integral oiler
provides continuous lubrication
Good control
Combined blower and throttle lever for easy control
Vibration damping
Cushioned piston reduces shock

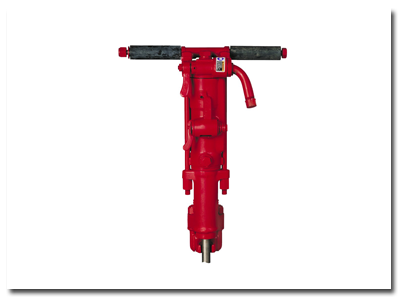

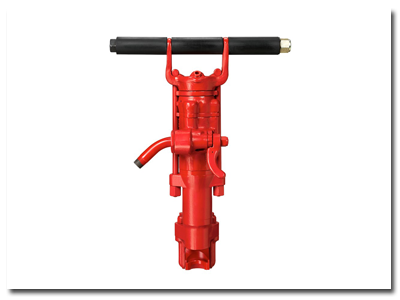

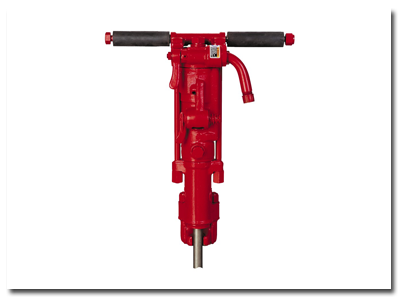

Rock Drills, Sinker Drills

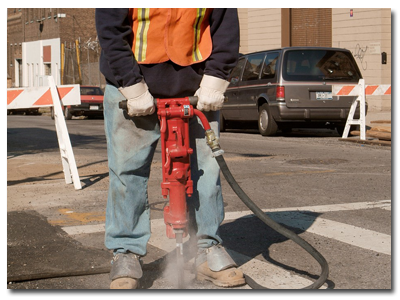

Our rock drills are the ideal tools for all "hand-held" drilling operations. Our rock drills have streamlined design and low air consumption, which are very much appreciated. Smooth contours, side exhausts and "flat back" make them easy to handle. High performance, robustness and low maintenance costs are essential for stone mining. Our design includes a higher quality valve and cylinder-porting concept that helps maintain constant drilling speed throughout a long service life. Working parts re constantly protected with an effective lubrication system.
Options available
Noise-reducing muffler and wet drilling
PNEUMATIC
SINKERS/SURFACE
ROCK DRILLS |
|
CP 0022 |
CP 0022 |
CP 0032 |
CP 0032 |
CP 0032 S |
CP 0069 |
CP 0069
Wet |
| Weight |
kg |
15 |
15 |
24.5 |
24.5 |
24.5 |
29 |
29 |
| Length |
mm |
475 |
500 |
559 |
575 |
575 |
610 |
622 |
| Air Consumption |
l/s |
22 |
22 |
48 |
48 |
48 |
61 |
61 |
| Blows Per Minute |
bpm |
2,220 |
2,220 |
1,980 |
1,980 |
1,980 |
1,860 |
1,860 |
Vibration Level 3 Axes
(ISO 20643) |
m/s² |
25.7 |
25.7 |
21.9 |
21.9 |
21.9 |
29 |
29 |
Sound Power Level
Guaranteed (2000/14/EC) |
dB(A) |
116 |
116 |
122 |
122 |
114 |
124 |
124 |
Sound Pressure Level
(ISO 11203) |
dB(A) |
106 |
106 |
111 |
111 |
103 |
113 |
113 |
| Drill Rate in Hard Rock |
mm/min |
150 |
150 |
230 |
230 |
230 |
260 |
260 |
| Air Inlet |
|
1/2"
Swivel |
1/2"
Swivel |
3/4"
Swivel |
3/4"
Swivel |
3/4"
Swivel |
3/4"
Swivel |
3/4"
Swivel |
| Part Number |
Chuck
SizeHex
22 x 82.5
mm |
8900
0020 01 |
- |
T022318 |
- |
- |
- |
- |
| Part Number |
Chuck
SizeHex
22 x 108
mm |
- |
8900
0020 02 |
- |
T022117 |
T025431 |
T006661 |
T025423 |
| Part Number |
Chuck
SizeHex
25 x 108
mm |
- |
- |
- |
T022319 |
- |
T022259 |
- |
|
|
