Scabblers
Cleaning and roughing
User friendly
Contoured grip handle reduces operator fatigue and increases output.
Lightweigt and compact
Chamfered cylinder block increases visibility of the work piece permitting close operation in tight corners.
Durable
Tungsten carbide-tipped pistons last longer and are easily replaced.

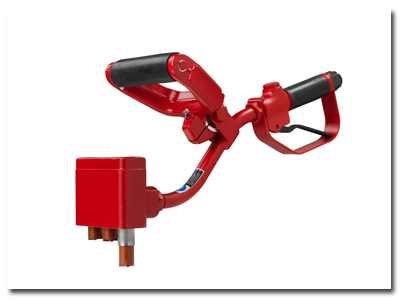

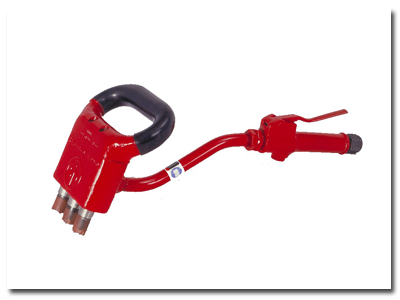

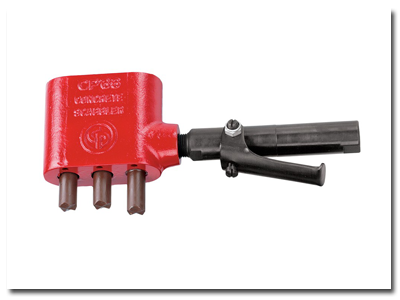

Our scabblers
These are the lightweight and compact tools, equipped with tungsten-carbide tipped pistons. The pistons oscillate inside the head or cylinder of the scabbler and strike the surface of the material being worked on. All the scabblers have three pistons mounted in line.
The cycling of the pistons occurs due to the air porting arrangements in the piston assembly. The machines are examples of a valveless piston motor.
Applications

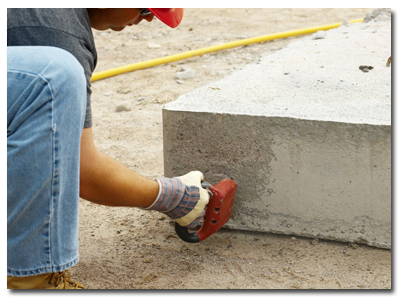

Used for cleaning and roughing concrete and construction joints
| PNEUMATIC SCABBLERS |
|
CP 0006 |
CP 0006 SVR |
CP 0066 |
| Weight |
kg |
4.5 |
6.5 |
4.5 |
| Length |
mm |
470 |
470 |
280 |
| Air Consumption |
l/s |
13 |
13 |
13 |
| Blows Per Minute |
bpm |
3,000 |
3,000 |
3,000 |
Vibration Level 3 Axes
(ISO 20643) |
m/s² |
23.1 |
7.1 |
12.8 |
| Sound Pressure Level (ISO 11203) |
dB(A) |
95 |
95 |
97 |
| Air Inlet |
|
1/2" NPTF |
1/2" NPTF(1/2" BSP) |
1/2" BSP |
| Number of Pistons |
|
3 |
3 |
3 |
| Part Number |
|
T022137 |
8900 0040 01 |
T024412 |
|
|
