CP HANDHELD PNEUMATIC EQUIPMENT - ROTARY HAMMERS
Chicago Pneumatic - Handheld Pneumatic Equipment
CP Handheld Pneumatic Equipment - Rotary Hammers
CP Handheld Pneumatic Equipment - Rotary Hammers
CP Handheld Pneumatic Equipment - Rotary Hammers

Rotary hammers
Drill and a chipping hammer


Built-in oiler
Provides continuous lubrication

Powerful
Excellent power-to-weight ratio helps drill holes faster and easier than comparable electric rotary hammers

Good control

Teasing throttle for precise control

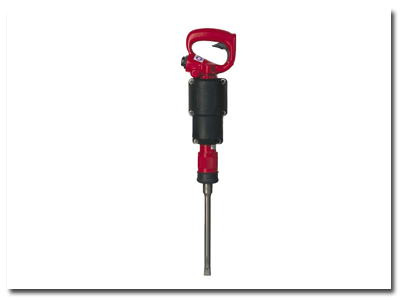

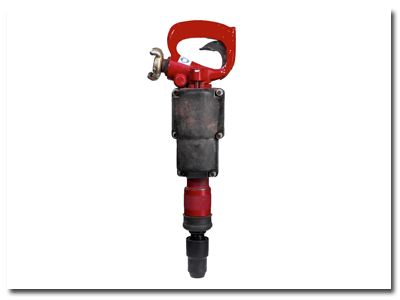

Our CP 0009 rotary hammers
The CP range of compact and lightweight plughole drills includes tools capable of drilling holes from 8 up to 44 mm and for use in light chipping applications.
Our CP 0009 is the "mother" of small rotary drills. It must be one of the most copied air tools available on the market because no other design could match such a performance for such a small, easy-to-use drill. This is a key product that has made Chicago Pneumatic the leading brand of air tools in the US.


Good to know
Equipped with an SDS adaptor, CP 0009 a, ac and cs can be used with electric hammer drill bits

PNEUMATIC ROTARY HAMMERS CP 0009 CS CP 0009 ES
Weight kg 4.5 4.5
Length mm 380 380
Air Consumption l/s 9 9
Blows Per Minute bpm 3,420 3,420
Vibration Level 3 Axes
(ISO 20643) Breaking/Drilling
m/s² 20.2 / 21.2 20.2 / 21.2
Sound Power Level
Guaranteed (I2000/14/EC)
dB(A) 103 103
Sound Pressure Level
(ISO 11203)
dB(A) 88 88
Retainer Type Quick
Change
Quick
Change
Air Inlet 3/8" BSP 3/8" BSP
Handle Type mm D D
Drill Rate in
Hard Rock / Concrete
mm 180 / 160 180 / 160
Max Drill Diameter in
Hard Rock / Concrete
mm 32 32
Chuck Size Rnd. 19x95 Rd 19x14,7
Hex x 89
Part Number T022322 T022330

Download Brochure:

Rock Drills, Rotary Hammers, Sinker Drills
Construction equipment range guide
