Rivet buster
Extra tough for demanding jobs
Easy handling
Teasing throttle for precise control.
Durable
Rugged design and components for reliable opertaion under tough conditions.
Safe
Stepped cylinder design for added safety.

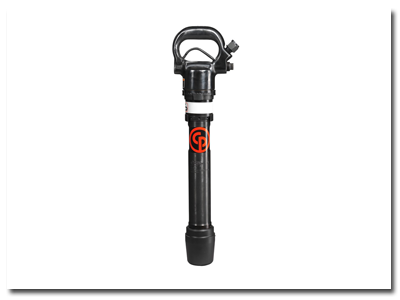

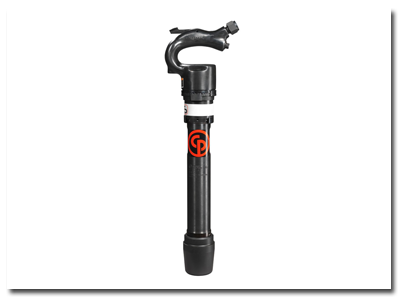

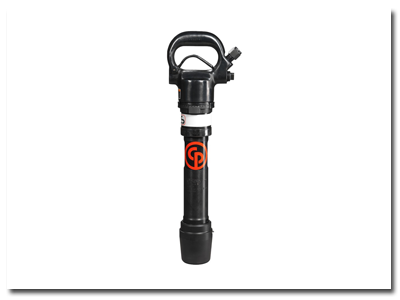

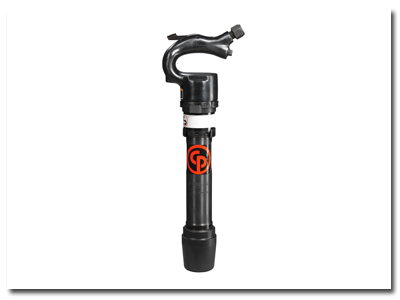

Our rivet busters
For excellent hitting power per kg, our rivet busters are the right choice - delivering one of the best power-to-weight ratios available. A T-handle breaker would need to be at least twice as heavy to provide equivalent performance. Yet even with all this power, our rivet busters are easy to control thanks to low blow frequency and a teasing throttle. They're perfect for a variety of concrete and metal applications.
Applications

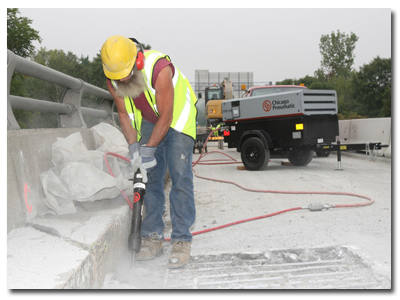

Used for removing rivets in metal and concrete applications, including demolition and bridge work
| PNEUMATIC RIVET BUSTERS |
|
CP 4608 P |
CP 4608 D |
CP4611 P |
CP 4611 D |
| Weight |
kg |
13.5 |
14 |
15 |
15.5 |
| Length |
mm |
584 |
600 |
660 |
676 |
| Air Consumption |
l/s |
21 |
21 |
21 |
21 |
| Blows Per Minute |
bpm |
900 |
900 |
720 |
720 |
Vibration Level 3 Axes
(ISO 20643) |
m/s² |
12.6 |
12.3 |
13.3 |
14.3 |
Sound Power Level
Guaranteed (I2000/14/EC) |
dB(A) |
105 |
105 |
105 |
105 |
Sound Pressure Level
(ISO 11203) |
dB(A) |
93 |
93 |
93 |
93 |
| Trigger Type |
|
Outside |
Inside |
Outside |
Inside |
| Air Inlet |
|
1/2" NPTF |
1/2" NPTF |
1/2" NPTF |
1/2" NPTF |
| Handle Type |
|
Open |
D |
Open |
D |
| Cylinder |
|
Short (8") |
Short (8") |
Short (11") |
Short (11") |
| Chuck Size |
|
Jumbo |
Jumbo |
Jumbo |
Jumbo |
| Part Number |
|
8900
0001 49 |
8900
0001 51 |
8900
0001 50 |
8900
0001 52 |
|
|
