Pneumatic breakers
Engineered for high performance
Teasing throttle
Makes starting a cut easy, even under difficult conditions.
Tuned valve system
Gets more power out of your breaker and increases productivity.
Internal oiler
The easy-to-fill oiler keeps your tool in shape.

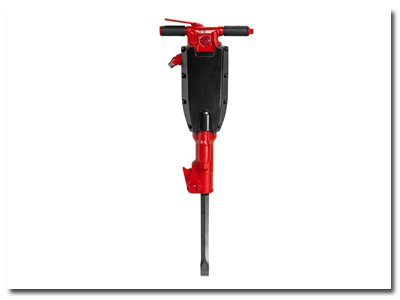

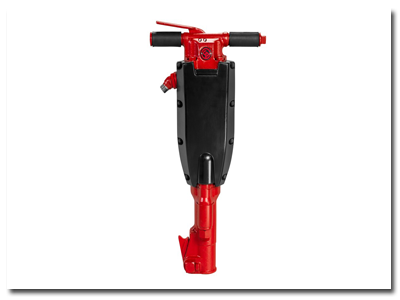

Our pneumatic breakers
Our pneumatic breakers are available in different models and sizes in order to suit a variety of applications. There is a choice of several different shanks to cater to needs in different markets. You can also choose from standard breakers, standard breakers with a muffler for noise reduction (S models) and vibrationreduced breakers with state-of-the-art vibration dampening (SVR models). All S and SVR models comply with the European Union Noise Directive (2000/14/EC) and are CE-marked.

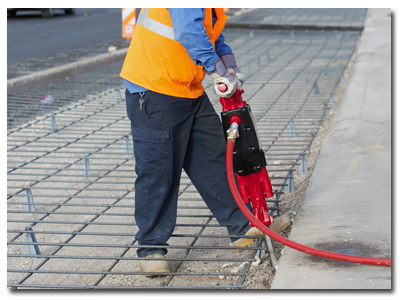

Applications
Used in demolition, construction, renovation, road construction, bridge work and street repairs.
| PNEUMATIC BREAKERS |
|
CP
0112 S |
CP
1210 S |
CP
1210 S |
CP
1210
SVR |
CP
1210
SVR |
| Weight |
kg |
14.5 |
22 |
22.5 |
24.5 |
25 |
| Length |
mm |
535 |
540 |
585 |
600 |
650 |
| Air Consumption |
l/s |
23 |
26.5 |
26.5 |
26.5 |
26.5 |
| Blows Per Minute |
bpm |
1,620 |
1,400 |
1,400 |
1,400 |
1,400 |
Vibration Level 3 Axes
(ISO 20643) |
m/s² |
16.3 |
14.6 |
14.6 |
5.3 |
5.3 |
Sound Power Level
Guaranteed (I2000/14/EC) |
dB(A) |
105 |
105 |
105 |
105 |
105 |
Sound Pressure Level
(ISO 11203) |
dB(A) |
93 |
92 |
92 |
92 |
92 |
| Retainer Type |
|
Latch |
Latch |
Latch |
Latch |
Latch |
| Air Inlet |
|
3/4"
NPTF |
3/4"
NPTF |
3/4"
NPTF |
3/4"
NPTF |
3/4"
NPTF |
Part Number
(ISO Std Shank) |
Chuck:
25 x 108
mm |
8900
0030 25 |
8900
0030 04 |
- |
8900
0030 06 |
- |
| Part Number |
Chuck:
28 x 160
mm |
- |
- |
8900
0030 07 |
- |
8900
0030 08 |
| Part Number |
Chuck:
32 x 160
mm |
- |
- |
8900
0030 09 |
- |
8900
0030 10 |
| PNEUMATIC BREAKERS |
|
CP
1260 S |
CP
1260
SVR |
CP
0117 S |
CP
1290 S |
CP
1290
SVR |
| Weight |
kg |
31 |
34 |
36 |
39 |
43.5 |
| Length |
mm |
680 |
735 |
740 |
730 |
785 |
| Air Consumption |
l/s |
34.5 |
34.5 |
35 |
43 |
43 |
| Blows Per Minute |
bpm |
1,300 |
1,300 |
1,080 |
1,100 |
1,100 |
Vibration Level 3 Axes
(ISO 20643) |
m/s² |
20.7 |
6.5 |
11.9 |
18.4 |
6.2 |
Sound Power Level
Guaranteed (I2000/14/EC) |
dB(A) |
110 |
110 |
108 |
111 |
111 |
Sound Pressure Level
(ISO 11203) |
dB(A) |
97 |
97 |
95 |
98 |
98 |
| Retainer Type |
|
Latch |
Latch |
Latch |
Latch |
Latch |
| Air Inlet |
|
3/4"
NPTF |
3/4"
NPTF |
3/4"
NPTF |
3/4"
NPTF |
3/4"
NPTF |
Part Number
(ISO Std Shank) |
Chuck:
25 x 108
mm |
- |
- |
- |
- |
- |
| Part Number |
Chuck:
28 x 160
mm |
8900
0030 31 |
8900
0030 33 |
T022093 |
8900
0030 40 |
8900
0030 42 |
| Part Number |
Chuck:
32 x 160
mm |
8900
0030 30 |
8900
0030 32 |
T022092 |
8900
0030 39 |
8900
0030 41 |
|
|
