Concrete saw
powerful direct driven tool
Good control
Two position handle
Operator friendly
Well balanced and extremely durable
Service friendly
Integral oiler
Our pneumatic saw

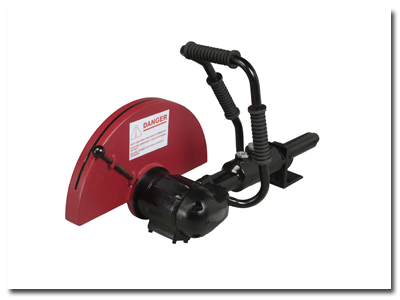

Our CP 0044 is a very powerful and durable air tool, driven by a direct drive, 4 hp motor. The direct drive eliminates the need to continuously check the drive belt tension.
The saw is engineered for precise balance so less effort is needed to do the job at hand. A built-in oiler provides continuous subrication, so more time can be spent on the job and less time on servicing.
Safety features on the CP 0044 include a standard lock-off trigger to help prevent accidental starting and a blade guard that can be operated by one hand for convenience.
Our air driven saw is appreciated because it is powerful and has a very low maintenance cost in relation to gasoline driven saws.
Applications

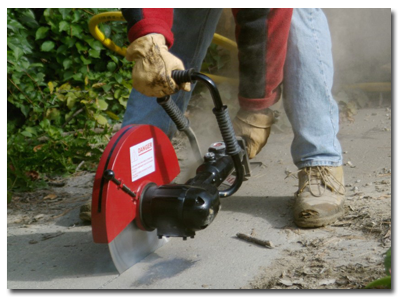

Our powerful CP 0044 pneumatic cut-off saw is designed to cut a variety of materials including concrete, asphalt and stone. The pneumatic drive makes it especially suitable for indoor applications where gasoline driven units are difficult or impossible to use.
| PNEUMATIC CUT-OFF SAW |
|
CP 0044 |
| Power |
kW |
3 |
| Weight |
kg |
11 |
| Length |
mm |
680 |
| Air consumption |
l/s |
40 |
| Revolutions |
rpm |
4800 |
| Blade |
mm |
355 |
| Max. depth |
mm |
100 |
| Arbor |
mm |
25 |
| Air inlet |
in |
1/2" NPT |
Vibration level 3 axes
(ISO 28927-8) |
m/s² |
6.6 |
Sound power level
guaranteed (2000/14/EC) |
dB(A) |
112 |
| Part Number |
|
T024421 |
|
|
