CP HANDHELD PNEUMATIC EQUIPMENT - CLAY DIGGERS
Chicago Pneumatic - Handheld Pneumatic Equipment
CP Handheld Pneumatic Equipment - Clay Diggers
CP Handheld Pneumatic Equipment - Clay Diggers
CP Handheld Pneumatic Equipment - Clay Diggers

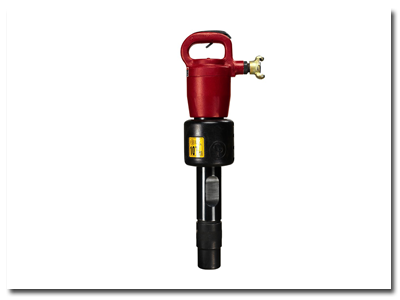

Clay diggers
Built to last for efficient digging


Quality
Steel design with quality components for long-lasting reliability.

Easy handling
Slim design also allows it to work in tight spaces.

Less vibration

Models with a vibration-reduced D-handle available.

Our clay diggers

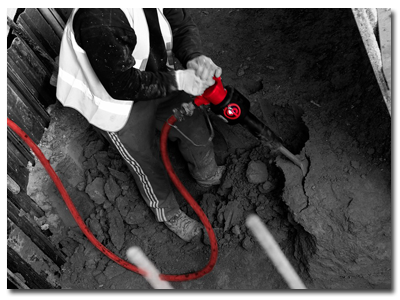

Our clay diggers are ideal for soil digging because the design has an exhaust port at the top, allowing the unit to be buried almost to the handle. These models also offer one of the most powerful blows, along with the right combination of blows per minute and weight for clay digging and rock-breaking applications.

Compact design
Powerful blow


PNEUMATIC
CLAY DIGGERS
FL 0022 FL 0022 S FL 0022
SVR
Weight kg 10.5 11 13
Length mm 495 495 635
Air Consumption l/s 21 21 21
Blows Per Minute bpm 1,320 1,320 1,320
Vibration Level 3 Axes
(ISO 20643)
m/s² 16.3 16.3 21.9
Sound Power Level
Guaranteed (I2000/14/EC)
dB(A) - 105 105
Sound Pressure Level
(ISO 11203)
dB(A) - 89 89
Retainer Type Screw
Cap
Screw
Cap
Screw
Cap
Air Inlet 3/4" BSP 3/4" BSP 3/4" BSP
D-Handle Type Outside
Trigger
Outside
Trigger
Outside
Trigger
Part Number Chuck
SizeSquare
19 x 82mm
8900
0001 24
8900
0001 25
8900
0001 39

Download Brochure:

Clay diggers
Construction equipment range guide
