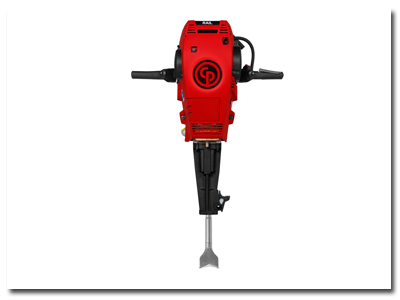

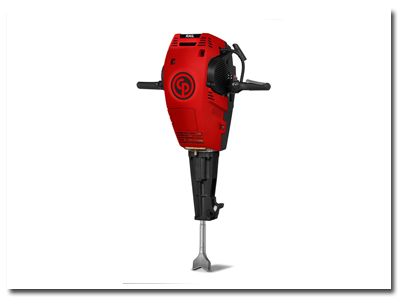

Red hawk rail
The perfect match
Optimized power
Designed specifically for railway applications, the Red Hawk Rail is a portable solution for tie tamping. Power is optimized for fast, efficient tamping without damaging the ballast..
Ergonomic design
Vibration-reducing handles allow operators to work longer with less fatigue. Hand throttle also provides excellent control
Optimized for rail
A tool that's too powerful can destroy the ballast, while manual tamping takes time and is less effective. We have the right power, along with high blows per minute, which is ideal for tie tamping
Quick start
Spring-loaded kill switch springs back into the starting position, so the tool is ready when you pull the cord on the recoil start.
Portable and efficient
No compressor, generator or power pack is needed, so an access road along the rail lines is not required.
Service access
The compartment opens for easy access to change the filter.
Front exhaust
Exhaust is ported at the front of the tool, away from the operator
The perfect match
Designed specifically for railway applications, the Red Hawk Rail is optimized for fast, efficient tie tamping without damaging the ballast or the machine.
The portable design also allows you to get in and out of the work area quickly, with no compressors, hoses or cables to worry about.

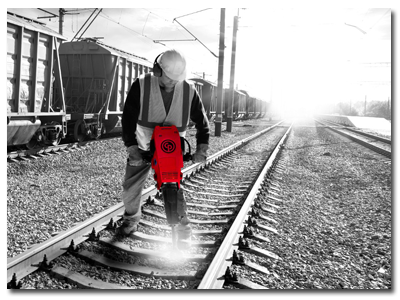

It's ideal for railway station applications such as tamping around switches and cables.
Right for tie tamping
Red Hawk Rail comes with the right power and a high blow frequency which is ideal for tie tamping.
Technical specifications
| Model |
|
Red Hawk Rail |
Red Hawk Rail |
| Weight |
kg |
22 |
22.5 |
| Length |
mm |
743 |
793 |
| Impact energy |
j |
40 |
40 |
| Blow frequency |
bpm |
1,620 |
1,620 |
| Power |
kW |
1.5 |
1.5 |
| Motor |
cc |
90, 2-stroke |
90, 2-stroke |
| Fuel capacity |
l |
1 |
1 |
| Fuel mix |
% |
2 |
2 |
| Fuel consumption |
l/hour |
0,8 |
0,8 |
| Alkylate fuel |
|
yes |
yes |
| Vibration level 3-axis* |
m/s² |
6.7 |
6.7 |
| Sound power level* |
dB(A) |
109 |
109 |
Full details of measurement are available in the Safety and Operating instruction of the product. It can be found on www.cpprintshop.com
| Part number (ISO Standard Shank) |
|
|
| Chuck size Hex 25x108 mm |
8318 0900 61 |
|
| Chuck size Hex 28x160 mm |
|
8318 0900 25 |
| Chuck size Hex 32x160 mm |
|
8318 0900 21 |
|
|
