Chicago Pneumatic - Handheld Petrol Equipment
CP Handheld Petrol Equipment - Red Hawk Drill
CP Handheld Petrol Equipment - Red Hawk Drill
CP Handheld Petrol Equipment - Red Hawk Drill

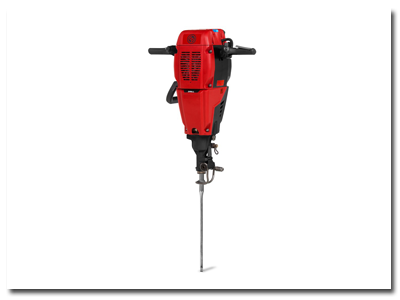

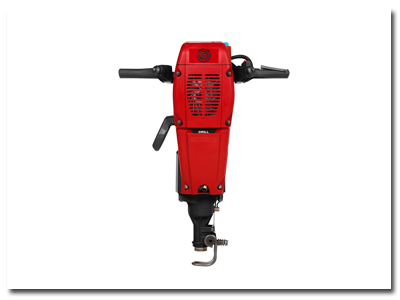

Red hawk drill
The breaker that doubles as a drill

The multipurpose tool
Red Hawk Drill combines breaking and drilling in one package. This universal tool is ideal for light service jobs and working in remote locations.

Ergonomic design
Vibration-reducing handles allow operators to work longer with less fatigue. Hand throttle also provides excellent control

Drill/Breaker combination

The multipurpose Red Hawk Drill combines breaking and drilling in one package, ideal for remote areas that are difficult to access. Flip the lever to switch from drilling to breaking.

Portable design
No external power sources, hoses or cables are required. An optional wooden carrying box is also available which fits in the trunk of a car..

Convenient handle
Operator can keep one hand on the throttle and push down or pull up on the side handle. The handle also makes the tool easy to carry.

Drilling up to 2m
A high impact rate, low impact energy and rotation provide a powerful combination for drilling. A built-in air flushing device supports drilling up to 2 m

Easy to maneuver
A low center of gravity makes the tool easy to handle for excellent productivity

One tool. Many uses.
Whether you´re breaking a small patch of concrete or splitting a rock, the gasoline-powered Red Hawk Drill can finish the job in the time it would take to set up a compressor and hoses for a pneumatic breaker. That´s true efficiency at work.
It can also drill up to 30 cm per minute in solid granite. The Red Hawk Drill is compact, lightweight, and portable enough for a wide range of light applications, from installing signposts to breaking small areas of concrete to fencing work. It´s also ideal for splitting rock and digging holes in hard and frozen ground.

Multiple applications
Choose from a range of different working tools for cutting, breaking, drilling, driving, compacting and more

Technical specifications

Model Red Hawk Drill
Weight kg 22
Length mm 732
Impact energy J 22-25
Blow frequency bpm 2,700
Power kW 2
Motor cc 185, 2-stroke
Fuel capacity l 1.2
Fuel mix % 2
Fuel consumption l/hour 1.3-1.5
Alkylate fuel no
Vibration level 3-axis* m/s² 5.8 (breaking), 9.3 (drilling
Sound power level* dB(A) 108
Full details of measurement are available in the Safety and Operating instruction of the product. It can be found on www.cpprintshop.com

Part number (ISO Standard Shank)
Chuck size Hex 25x108 mm 8318 0900 40

Download Brochure:

Red Hawk range brochure
