Fuel savings
Many models are equipped with Power On Demand. This system automatically idles the engine when the tool is not being used and speeds it up when the tool is activated, saving fuel and keeping noise to a minimum.

Easy operation
The variable-flow on/off valve enables simple tool change and slow startup. A gauge shows when it's time to change the filter.

Compact and portable
Two people can lift the hydraulic power pack into a van for site-to-site transportation. On-site, it can easily be wheeled around by one person using the convenient foldable handle.


Our power packs
Why tow a large compressor to the site if you don't need to? Our hydraulic power pack gives you excellent convenience to power the tools you need and get to work right away. They're also a cost- effective choice.
In fact, the power output provided by a 9 HP CP power pack when running a 25-32 kg breaker is equal to operating a 20-25 HP compressor running a 32 kg breaker. This helps reduce fuel and maintenance costs - another benefit of hydraulic power.

Our hydraulic power packs are available in gasoline, diesel or electrically driven versions and are designed to provide portable power for a wide range of applications in the 20-40 l/min at 140-172 bar range.

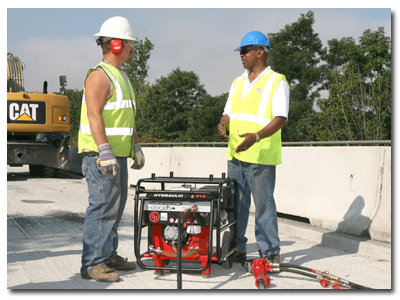

Used for easily providing power to hydraulic tools at any jobsite

HYDRAULIC POWER PACKS		PAC P9	PAC P13	PAC P18	PAC P18 Twin	PAC E6	PAC E11	PAC E11 Twin
Weight Including Oil	kg	72	91.4	118	123.45	70	130	135.45
Length	mm	710	745	755	755	710	745	745
Width	mm	525	600	700	700	525	605	605
Height	mm	585	705	720	720	585	705	705
Oil Flow	l/min	20	20-30	20-40	2x20 / 1x40	20	39	2x20 / 1x40
Maximum Pressure	bar	150	150	145	145	150	172	155
Fuel Capacity	l	6	6.5	8.5	7.2	-	-	-
Ehtma Class		C	C/D	C/D/E	C/E	C	D	C/E
Sound Power Level Guaranteed (2000/14/EC)	dB(A)	101	101	101	101	96	101	101
Sound Pressure Level (ISO 11203) (Lp, r=1m)	dB(A)	88	89	88	89	79	86	86
Power on Demand (POD)		Yes	Yes	No	Yes	No	No	No
Oil Control - Engine Oil		Yes	Yes	Yes	Yes	No	No	No
Electric Start		No	No	Yes	Yes	Yes	Yes	Yes

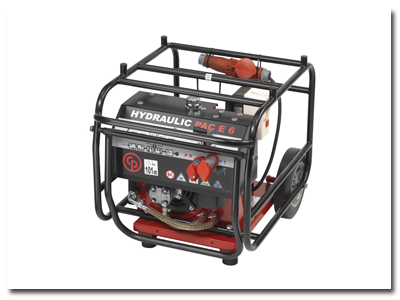

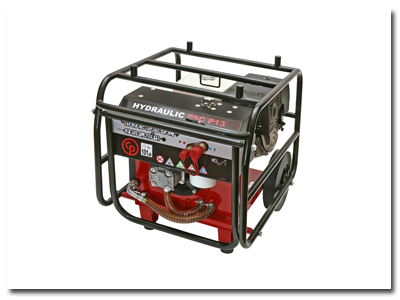

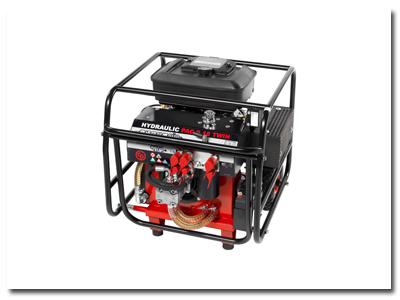

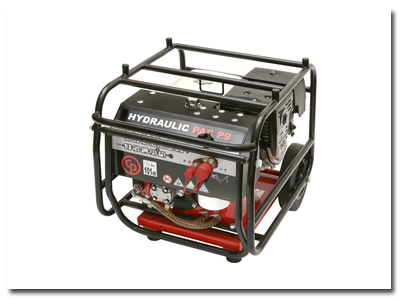

Engine		9 HP Honda@ Petrol	13 HP Honda@ Petrol	18 HP B&S Vanguard Petrol	18 HP B&S Vanguard Petrol	5.5 kW / 3x400 V 16A Electric	11 kW / 3x400 V 32A Electric	11 kW / 3x400 V 32A Electric
Part Number		1807 0080 33	1807 0110 29	1807 0160 28	1807 0160 45	1807 0080 47	1807 0160 47	1807 0160 46

Download Brochure: Handheld hydraulic equipment Construction equipment range guide
