CP HANDHELD HYDRAULIC EQUIPMENT - POST DRIVERS
Chicago Pneumatic - Handheld Hydraulic Equipment
CP Handheld Hydraulic Equipment - Post Drivers
CP Handheld Hydraulic Equipment - Post Drivers
CP Handheld Hydraulic Equipment - Post Drivers

Post drivers
A powerful partner


T version

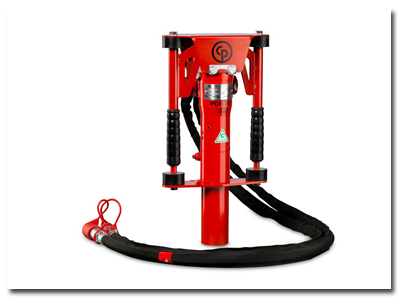

Our T version has the trigger function mounted directly on the driver for short post driving

RV version

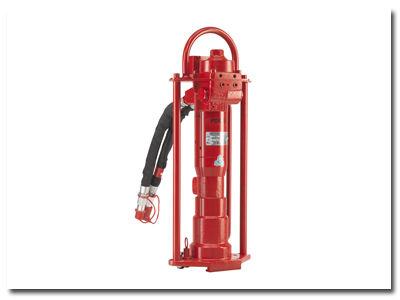

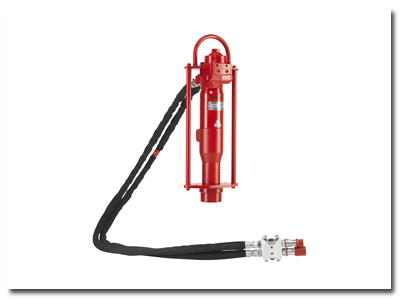

RV version is equipped with an On/Off valve mounted at the end of a 2 m long tail hose, for remote operation on long poles

All conditions

Whatever the ground condition or material, whether it's soft soil or rock-hard asphalt, our post driver will drive down your posts in record-breaking time

CP Handheld Hydraulic Equipment - Post Drivers
CP Handheld Hydraulic Equipment - Post Drivers
CP Handheld Hydraulic Equipment - Post Drivers

Three model sizes available
Three models, PDR 30, PDR 75 and PDR 95 each designed for specific applications, helps you to find our perfect post driver for any driving job. For large-scale jobs, the PDR 75 and PDR 95 are often used together with tractors or cranes, which make it easier to lift and guide the driver.

Applications

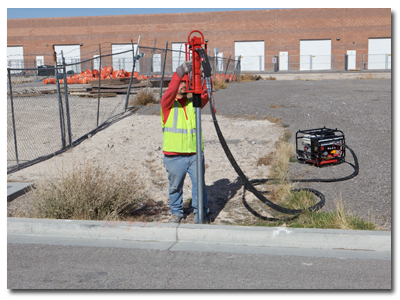

Driving down posts or rods for fences, road signs, crash barriers, tent anchors, or other purposes calls for a tough machine with plenty of power

HYDRAULIC POST DRIVERS PDR 30 T PDR 75 T PDR 75 RV PDR 95 T PDR 95 RV
Weight With Hoses kg 17.6 32.2 32.8 39.2 39.8
Oil Flow l/min 20 20-30 20-30 28-40 28-40
Working Pressure bar 80-100 105-140 105-140 105-125 105-125
Maximum Back Pressure bar 10 25 25 15 15
Impact Rate at 30 l/min 2,300 1 1,680 1,680 1,320 1,320
Rec. Driving Diameter² mm 10 - 60 40 -100 40 -100 70 -150 70 -150
Vibration Level 3
Axes (ISO 28927-10)
m/s² 17.5 12.8 - 20.1 -
Sound Power
Level (2000/14/EC)
Lw dB(A) 116 115 115 118 118
Sound Pressure
Level (ISO 11203)
(Lp, r=1m)
dB(A)
102 102 102 105 105
EHTMA Class C C/D C/D D/E D/E
Activation Type Trigger
Lever
Trigger
Lever
Remote
Valve
Trigger
Lever
Remote
Valve
Hydraulic System Open
Center
Open
Center
Open or
Closed Center
Open
Center
Open or
Closed Center
Part Number 1801
3940 07
1801
4040 01
1801
4050 01
1801
4140 01
1801
4150 01
¹ measured at oil flow 20 l/min; ² Driving capacity depending on ground condition and length, material and depth of rod to be driven
