Pick hammer
A powerful horizontal pick hammer
Easy handling
Lightweight for horizontal work
Easy operation
Slim design for excellent line of sight to the working tool point
Fast preparation
Fitted with flat face quick-release couplings for fast, easy connections
Get a grip on horizontal tasks

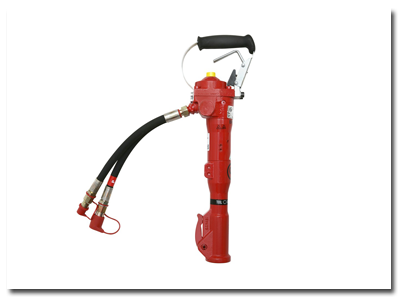

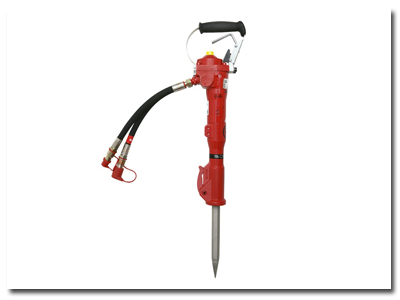

With a high impact power and giving 2,400 blows/min., our BRK 25 D D-handle hammer is the powerful choice for horizontal work in renovation, demolition and structural alteration. The detachable front handle, available as an optional extra, pivots 360° for optimal positioning.
The tool is well balanced, with no external side bolts and protruding machine parts that can come into contact with the operator's body.
Applications

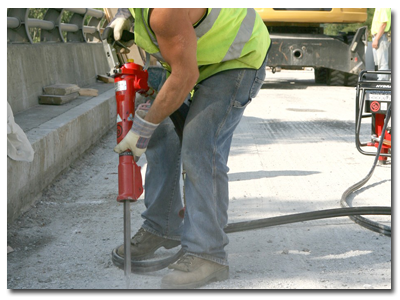

Used for light work in renovation, demolition and structural alteration
| HYDRAULIC PICK HAMMER |
|
BRK 25 D |
| Weight Without Hoses |
kg |
12.6 |
| Length |
mm |
650 |
| Oil Flow |
l/min |
20 |
| Working Pressure |
bar |
80-100 |
| Maximum Return Line Pressure |
bar |
10 |
| EHTMA Class |
|
C |
| Vibration Level 3 Axes (ISO 28927-10) |
m/s² |
16.5 |
| Sound Power Level Guaranteed (2000/14/EC) |
dB(A) |
105 |
| Sound Pressure Level (ISO 11203) (Lp, r=1m) |
dB(A) |
92 |
| Impact Rate |
bpm |
2300 |
| Shank Size Hex |
mm |
22 x 82.5 |
| Part Number |
|
1801 1746 12 |
|
|
