Cut off saws
Reliable cutting every time
Power
The power you need to cut through the toughest materials.
Low maintenance
Direct-drive configuration reduces maintenance.
Easy handling
Open cutting face eases use even in demanding conditions.

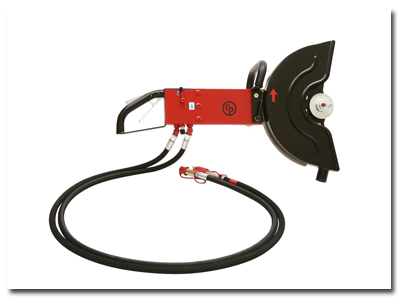

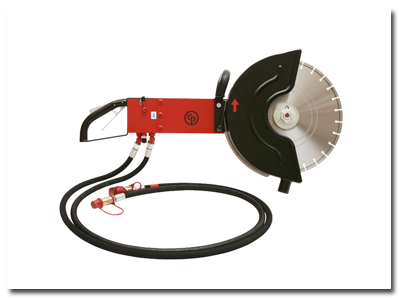

Our cut-off saws
They may be light and compact, but don't be fooled. Our hydraulic cut-off saw with the right blade will cut through concrete, asphalt and steel. With our 16-inch saw at full throttle, you have the raw power of a gasoline-powered engine in your hand.
The open cutting face makes our cut-off saw easy to use, even under the most demanding conditions. In addition, the simple, direct-drive configuration reduces maintenance, especially in comparison with belt-driven saws. A water kit is available to provide a supply of cooling water where needed.
Applications

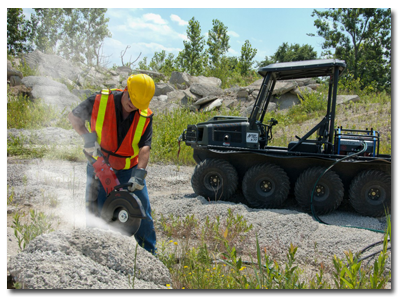

Used to cut through concrete, asphalt and steel
| HYDRAULIC CUT-OFF SAWS |
|
SAW 14 |
SAW 16 |
| Weight With Hoses |
kg |
9.8 |
10.6 |
Service Weight
Including Hoses and Disc |
kg |
13.3 |
14.9 |
| Disc Size |
mm |
355 |
405 |
| Arbor Size |
mm |
25.4 |
25.4 |
| Cutting Depth |
mm |
133 |
160 |
| Oil Flow |
l/min |
20-30 |
20-40 |
| Maximum Pressure |
bar |
172 |
172 |
| Revolutions |
rpm |
2,500-4,000 |
2,000-4,000 |
| Speed |
m/s |
46-75 |
42-85 |
| EHTMA Class |
|
C/D |
C/D/E |
Vibration
Level 3 Axes
(ISO 28927-8) |
m/s² |
4.9 |
4.9 |
Sound Power Level
Guaranteed (2000/14/EC) |
Lw dB(A) |
108 |
116 |
Sound Pressure
Level (ISO 11203) |
(Lp, r=1m)
dB(A) |
94 |
102 |
| Part Number |
|
1809
0140 03 |
1809
0166 13 |
|
|
