Core drills
Compact power with excellent control
Versatile
Well suited for drilling in concrete, masonry and asphalt.
Safe
Hydraulic control of the drill torque helps reduce kickback when bits jam.
Easy handling
Compact design for easy freehand drilling of holes up to 8 inches.

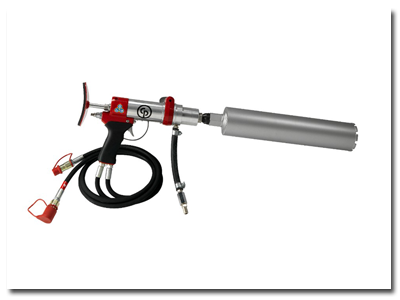

Our core drills

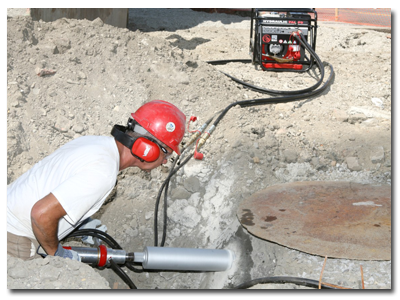

Our hydraulic core drills are ideal for working in confined areas - installing drainage, sewer and water pipes, or cable and ventilation ducts where large, deep holes are needed. They can be operated freehand or mounted in a drill stand.
Hydraulic control of the drill torque helps reduce kickback when drill bits jam. You're in control, even when drilling holes of 200 mm in diameter and above. In addition, due to the compact design of our core drill, you can easily drill holes of up to 200 mm freehand.
An easy-to-use tool designed for professional use, our core drill is ideal for large-size core drilling tasks on roadsides, indoor renovation, tunnel applications, or even underwater core drilling
A water kit is available to provide a supply of cooling water where needed
| HYDRAULIC CORE DRILLS |
|
COR 5 |
COR 15 |
| Weight With Hoses |
kg |
9.45 |
9.25 |
| Length Without Drill |
mm |
414 |
406 |
| Drill Diameter |
mm |
50-202 |
12-75 |
| Oil Flow |
l/min |
20-30 |
20-30 |
| Working Pressure |
bar |
60-120 |
60-120 |
| Revolutions |
rpm |
600-900 |
1,500-2,250 |
| Thread Female (Drive)1 |
|
1/2" BSP |
1/2" BSP |
| EHTMA Class |
|
C/D |
C/D |
| Vibration Level 3 Axes (ISO 28927-5) |
m/s² |
3.1 |
2.7 |
| Sound Pressure Level (ISO 11203) |
(Lp, r=1m)
dB(A) |
<70 |
<70 |
| Part Number |
|
1806
1014 54 |
1806
1014 54 |
¹ 1/2" BSP male x 11/4" UNC male drive adaptor included for use of larger diameter core bits
|
|
