Maximum versatility
High-performance centrifugal force allows our pneumatic pokers to be used in all consistencies of concrete, from low to high slump.

Robust construction
Design features few moving parts for simpler maintenance and longer life.

Low H/A vibrations
The multi-layer hose design provides an exhaust channel. The air inlet hose does not rotate, minimizing vibration to the hand.

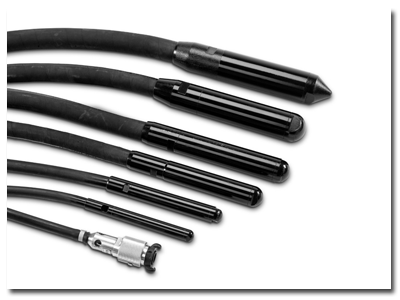

Our pneumatic pokers
Powered by an air compressor, our pneumatic pokers deliver high-speed vibration and are cooled by compressed air for convenient use - even in remote places where no electricity is available. And because they have few moving parts, they're robust and built to last with little maintenance other than lubrication.

High-performance centrifugal force makes our pneumatic pokers well suited for all types of concrete from low to high slump.

Applications

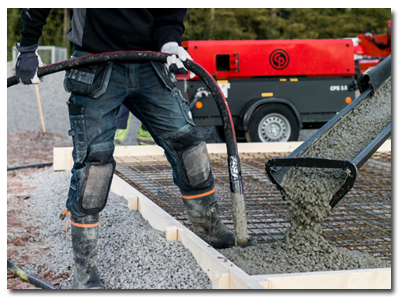

Our pneumatic pokers are designed to remove air voids in all consistencies of concrete from low to high slump. They are best suited for applications such as floors, bridges, tunnels, foundations, retaining walls, parking structures, harbors and precast forms.

Pneumatic pokers are cooled by compressed air instead of by immersion in the concrete, so they can be used for longer periods and in applications such as walls and columns.

		VPP 27	VPP 37	VPP 47	VPP 57	VPP 67	VPP 77
Tube Diameter	mm	27	37	47	57	67	77
Tube Length	mm	254	267	316	344	365	398
Tube Weight	kg	0.7	1.5	2.8	4.5	7.9	8.9
Frequency	vpm	12,000	12,000	12,000	12,000	12,000	12,000
Air Consumption	l/s	6	7.7	11.7	16.7	16.7	21.7
	cfm	12.7	16.2	24.7	35.3	35.3	45.9
	m³/min	0.36	0.46	0.7	1	1	1
H/A Vibrations	m/s²	0.5	1.0	2.4	2.1	2.1	2.4
Sound Power	dB(A)	84.5	89.2	95.8	95	94	98
Part Number	2 m Hose	4700 1174 40	4700 1174 41	4700 1174 42	4700 1174 43	4700 1174 44	4700 1174 45
Part Number	4 m Hose	4812 0515 79	4812 0515 80	4812 0515 81	4812 0515 82	4812 0515 83	4812 0515 84

Download Brochure: Concrete equipment Construction equipment range guide
