High frequency poker
Designed for high to low slump concrete
Ergonomics handle provide low HAV
Versatile

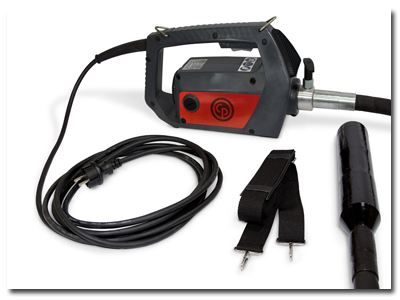

3 items in 1 unit and 20 different combinations are possible
Easy handling
Easy to carry (shoulder strap included), easy to use and well balanced
Easy service
Easy carbon access & replacement

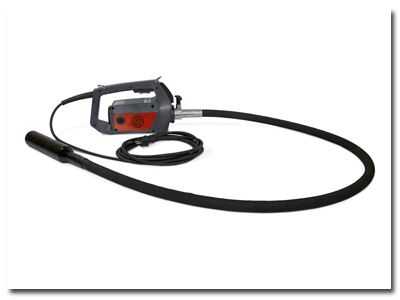

Our VDE 1600 high frequency poker

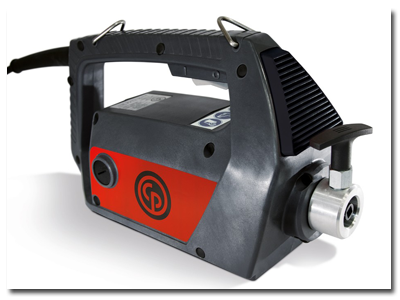

Our VDE 1600 drive unit for high frequency mechanical pokers. To ensure operators are protected, the AME 1600 delivers hand-arm vibration levels below 2.5 m/s² and comes equipped with a thermal/overload feature that stops the motor when it gets too hot.
Applications
Instant speed and power from the drive unit provides rapid acceleration contributing to outstanding performance in low to high slump concrete.
| DRIVE UNIT |
|
VDE 1600 |
| Power |
kW (hp) |
1.6 (2.2) |
| Cable length |
m |
5 |
| Weight |
kg |
6.1 |
| Speed |
vpm |
12,000 |
| H/A Vibrations |
m/s² |
2.84 |
| Brush lifetime |
hr |
250 |
| Consumption |
(A) 230V/115V |
7/14 |
| Part number |
230V-1-50/60Hz |
4812 0520 47 |
| VIBRATING POKER |
|
AT29 |
AT39 |
AT49 |
AT59 |
| Tube diameter |
mm |
29 |
39 |
49 |
59 |
| Tube length |
mm |
332 |
315 |
311 |
306 |
| Tube weight |
kg |
1.30 |
2.10 |
2.70 |
3.90 |
| Amplitude peak |
mm |
0.80 |
1.00 |
1.20 |
1.20 |
| Speed, r.p.m. |
- |
12,000 |
12,000 |
12,000 |
12,000 |
| Part number |
- |
4812
0508 05 |
4812
0508 06 |
4812
0508 07 |
4812
0508 08 |
| FLEXIBLE SHAFT |
|
10 |
15 |
20 |
30 |
40 |
| Length |
m |
1.00 |
1.5 |
2.00 |
3.00 |
4.00 |
| Weight |
kg |
2.40 |
3.00 |
3.80 |
5.60 |
7.30 |
| Part number |
|
4812
0508 13 |
4812
0508 14 |
4812
0508 15 |
4812
0508 16 |
4812
0508 17 |
|
|
