Mechanical pokers
Reliable, versatile and easy to use
Long life
Hardening treatment on pendulum shafts and poker heads allows long service life.
Low H/A vibrations
The pendulum design kicks four times per revolution, converting low rpm in the hose to high vpm in the head. This keeps vibration in the concrete, not the operator's hands.
Low maintenance
Greased-for-life bearings reduce maintenance requirements.
Our mechanical pokers

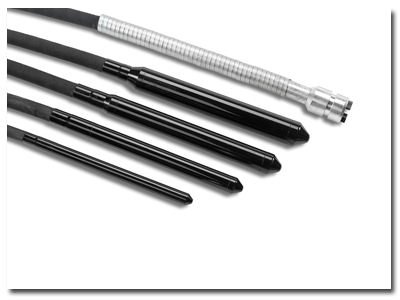

Our mechanical pokers are built to last and provide high acceleration inside medium to high slump concrete.
Made with high-quality steel parts, VPM mechanical pokers are built to last and provide high acceleration inside medium- to high-slump concrete. With easy servicing and a long hose, they're an excellent choice for mid-sized construction sites. Use with VDD 3000 or VDG 3200 drive units.

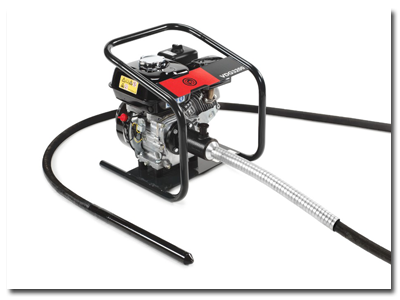

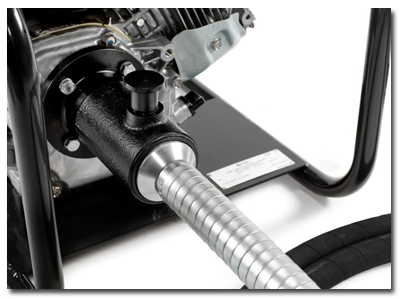

Mechanical Poker with drive unit
Long reach
All units come with a 5 m hose that has a dual vulcanized steel layer and a flexible multi-spiral steel shaft.
Our VPM mechanical pokers offer a simple yet efficient solution for most work sites.
|
|
VPM 26 |
VPM 36 |
VPM 46 |
VPM 56 |
| Tube Diameter |
mm |
25 |
35 |
45 |
55 |
| Tube Length |
mm |
295 |
330 |
375 |
390 |
| Tube Weight |
kg |
0.5 |
1.8 |
1.9 |
2.0 |
| Frequency |
vpm |
12,000 |
12,000 |
12,000 |
12,000 |
| H/A Vibrations |
m/s² |
2.0 |
5.2 |
6.9 |
8.2 |
| Sound Power |
dB(A) |
77.5 |
82 |
87.4 |
90 |
| Part Number |
- |
4812
0505 62 |
4812
0505 63 |
4812
0505 64 |
4812
0505 65 |
|
|
