Reliable operation
Honda® gasoline and Kohler® diesel engines deliver reliable performance.

High output stability
Models are equipped with a high-output permanent magnet generator for lighter weight and high output stability.

Easy shut-off

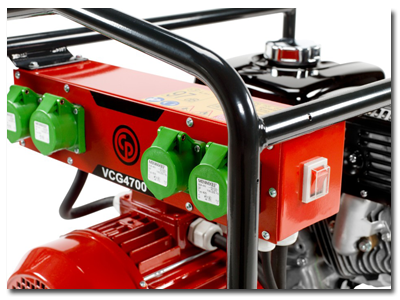

All models include a kill ignition switch on the control box.

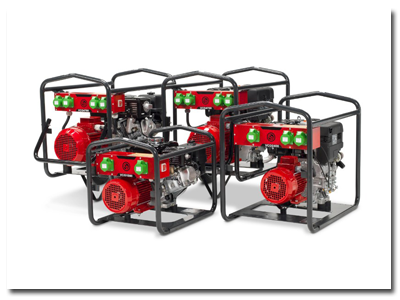

Our mobile generators
For portable power where and when you need it, count on our generators.

Wherever the job takes you, our generators bring the power. Depending on the model you choose, these units can run up to four VPE pokers simultaneously. And all models feature a robust design that protects critical components on the job site for longer service life.

Applications
Recommended for use with VPE pokers on remote job sites where portable power is needed. These models can power up to four VPE pokers simultaneously.

All models feature strong frame protection and a dedicated control box mounted on a rubber element, which minimizes vibration to the plugs.

		VCG 1800	VCD 2400	VCG 4700	VCD 4700
Engine	4 stroke, manual start	Honda GX 160	Kohler KD 225	Honda GX 270	Lombardini 15 LD 350
Fuel	-	Gasoline	Diesel	Gasoline	Diesel
Max Power at 3,600 rpm	kW (hp)	7.1 (9.5)	3.5 (4.8)	6.3 (8.4)	5.5 (7.5)
Output rated power	kW (hp)	1.5 (2.0)	1.7 (2.3)	3.6 (4.9)	3.6 (4.9)
Number of Outlets	-	2	3	4	4
Amperage	A	25	33	67	65
Voltage	V	42V-3-200Hz	42V-3-200Hz	42V-3-200Hz	42V-3-200Hz
Weight	kg	45	68	85	95
Sound Power	dB(A)	94	105	97	108
Wheels	-	Optional	Optional	Yes	Yes
Part Number	-	4812 0514 54	4812 0514 55	4812 0514 56	4812 0514 57

Download Brochure: Concrete equipment Construction equipment range guide
