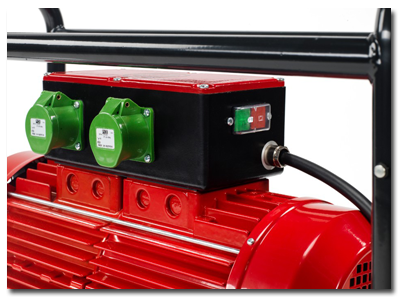

Robust construction
Models are mounted on solid frames with a dedicated socket box and feature heavyduty housing, which minimizes vibration to the plugs.

Jobsite flexibility
Models are available with up to four outlets to run up to four VPE pokers simultaneously.

High output stability
Models are equipped with a high-output permanent magnet generator for lighter weight and high output stability. They are designed to run the VPE or any pokers working under 42V-3-200Hz.


Our frequency converters

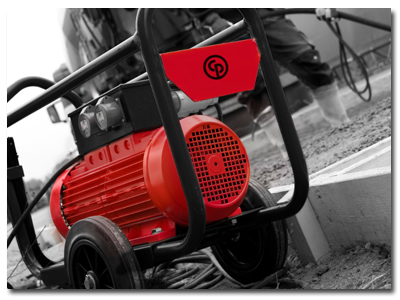

Wherever the job takes you, our frequency converters bring the power. Depending on the model you choose, these units can run up to four VPE pokers simultaneously. And all models feature a robust design that protects critical components on the job site for longer service life.

Applications
Models are designed to run CP VPE electrical pokers or any pokers working under 42V-3-200Hz. Recommended for job sites where electricity is supplied.

Switch with integrated overload protection helps ensure dependable operation.

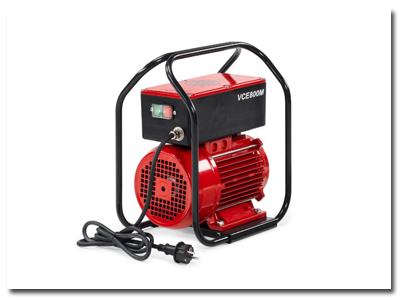

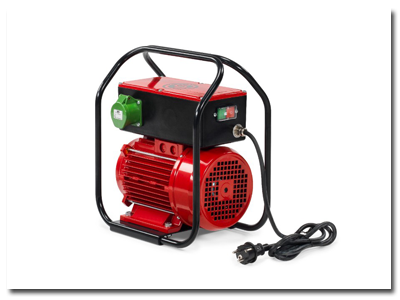

The VCE 800M has a single-phase asynchronous motor (230V-1-50-Hz) for reliability and long life.

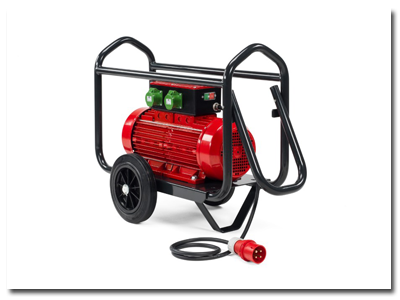

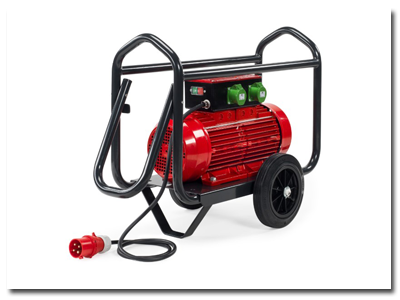

The VCE 1800T and VCE 4700T have a three-phase asynchronous motor (400V-3-50Hz) for reliability and long life.

		VCE 800M	VCE 1800T	VCE 4700T
Power	kVA	0.8	1.8	4.7
Output Density at 42V	A	11	25	67
Number of Phases	(Primary Voltage)	1	3	3
Number of Outlets	-	1	2	4
Weight	kg	18	31	70
Voltage	V	230V-1-50Hz	400V-3-50Hz	400V-3-50Hz
Protection Index	-	IP55	IP55	IP55
Sound Power	dB(A)	76	80	85
Part Number	-	4812 0515 85	4812 0515 87	4812 0515 90
