CP CONCRETE EQUIPMENT - ELECTRIC POKERS
Chicago Pneumatic - Concrete Equipment
CP Concrete Equipment - Electric Pokers
CP Concrete Equipment - Electric Pokers
CP Concrete Equipment - Electric Pokers

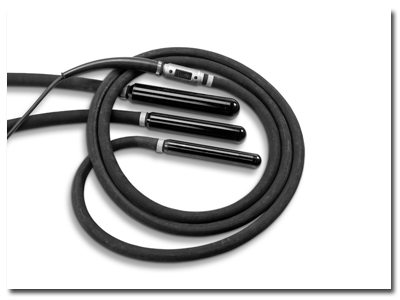

Electric pokers
Effective and efficient


Low power consumption
VPE pokers are powerful and fast yet require relatively low power, so they can be used with lower-output frequency converters (max. 11A).

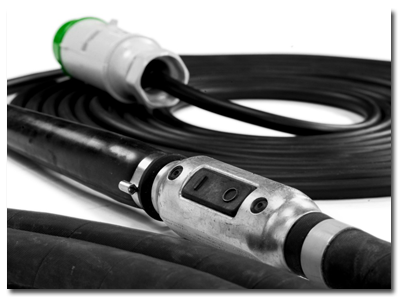

Reliable startup button
A helical aluminum rotor ensures reliable startup.

Durable construction

One-piece rotor shaft features a steel eccentric and two front ball bearings lubricated with oil for longer life. A sealed stator also allows oil lubrication.

Our electric pokers
Effective and efficient are the words that best describe our electric pokers. They're light and easy to handle, yet provide the vibration needed to remove air voids in the concrete. Fast startup, a wide radius of action and rapid acceleration for removal of air voids add to the effectiveness. Plus, the electric motor is highly efficient and the low voltage helps protect the operator.

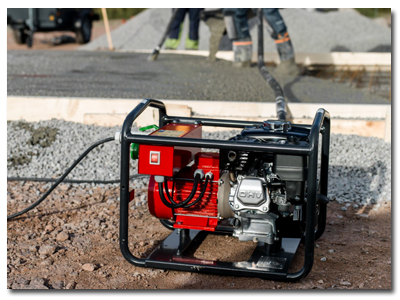

Our electric pokers are specifically designed for use in medium to high slump concrete. The VPE series is used with a frequency converter or specific generators delivering 42V-3-200Hz.


Applications
Our electric pokers are specifically designed for removing air voids inside medium to high slump concrete. They are suited for a wide range of applications, including columns, beams, walls, floors, bridges, tunnels, foundations, retaining walls, parking, harbors, precast forms and pre-slab forms.

VPE 40 VPE 50 VPE 60
Tube Diameter mm 40 50 60
Tube Length mm 255 284 330
Tube Weight kg 1.84 3.06 5.1
Frequency Hz - vpm 200 - 12 000 200 - 12 000 200 - 12 000
Ampere at 42V A 4 8 11
H/A Vibrations m/s² 1.8 3.28 3.23
Sound Power dB(A) 85 87 95
Part number - 4812
0505 56
4812
0505 57
4812
0505 58
