Trench compactors
Your partner in the trenches

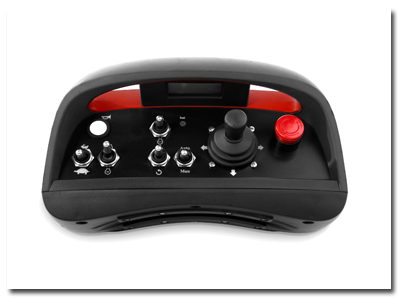

Remote operation
Our unit can be operated by a reliable Bluetooth remote control from a distance of up to 30 m.
Durable design
The hydraulic oil cooler reduces wear on hydraulic components. And strong welded scrapers are standard.
High compaction

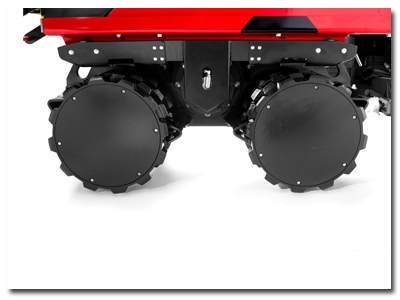

Units feature extratall pads for a higher degree of compaction.

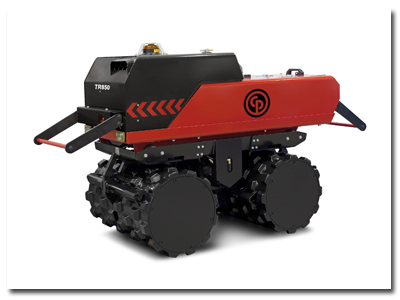

Our roller compactors
Compact and robust design, powerful engine, superior traction and reliable operation.
Reliable Bluetooth remote control lets you operate our trench roller while it does the work. And heavy work it does - thanks to a powerful engine, excellent traction and reliable operation in even the toughest conditions.

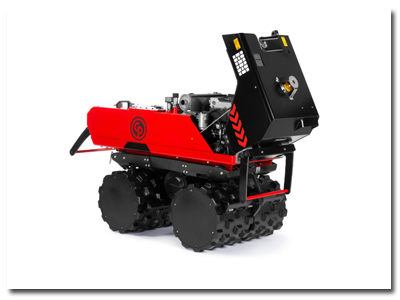

Our compact machines are able to turn tight corners and maneuver in confined spaces. They're also easy to service, with two lockable hinged doors for quick access to key components.
Applications

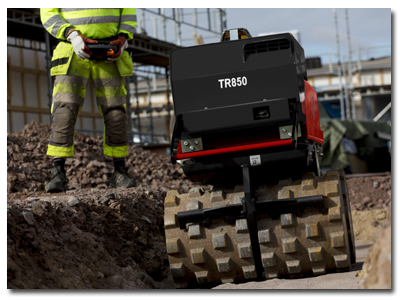

Used for cohesive or granular soil work in trenches, construction backfills, foundations and on roads.
Designed with safety in mind
Emergency push-stop buttons/bars and a manual control option are included.
| TRENCH ROLLERS |
|
TR 630 |
TR 850 |
| Weight |
kg |
1,573 |
1,675 |
| Centrifugal Force |
kN |
48 |
48 |
| Max Speed |
m/min |
21 |
21 |
| Number of Drums |
|
4 |
4 |
| Drum Width |
mm |
630 |
850 |
| Engine |
|
Hatz Diesel |
Hatz Diesel |
Sound Power Level
Guaranteed |
dB(A) |
106 |
106 |
Sound Pressure at
Operators Ear |
dB(A) |
- |
- |
| Gradeability |
kN |
36% |
36% |
| Frequency |
m/s² |
32 |
32 |
| Part Number |
dB(A) |
3382 0000 91 |
3382 0000 90 |
|
|
